The battery has shown promising performance, though there are a few considerations for packaging, setup, and operation. Below is an analysis based on hands-on experience:
Delivery and Packaging
The battery arrived in good condition. While the main components were safe, additional padding on the sides would enhance confidence in shipping durability.
Initial Performance and Measurements
- Initial State of Charge (SOC): Out-of-the-box, the battery measured 52.6V, corresponding to about 25% SOC. This is fairly typical for lithium batteries during storage.
- Charging Setup: Connected to a Victron MPPT 150/35 controller, it quickly pulled 20A (~970W) from a solar array with a total output of 1000W. This efficient charging aligns with LiFePO4 technology's ability to accept high current input.
Consumption and Overnight Discharge
- Power Draw: With a load of ~8W/hour (190W over 24 hours), the battery voltage stabilized at 53.44V overnight. This is an expected and satisfactory performance for light loads like a router and PTZ wireless camera (consumption ~5–8W).
Cost-Effectiveness
The battery was a bargain considering its specifications:
- Capacity: 48V, 100Ah
- BMS: 100A capacity
The price-performance ratio is excellent, particularly for budget-conscious users looking for reliable energy storage.
Winter Preparation
- Cold Weather Concerns: These batteries lack built-in freeze protection, an essential feature for winter usage. However, integrating a Victron temperature sensor to disable charging below 5°C is a smart workaround.
- Heated Storage Solution: The plan to house batteries in a refrigerator with DC-DC step-down conversion for heating is innovative. Ensuring a stable temperature will prolong battery life and maintain performance.
Final Observations

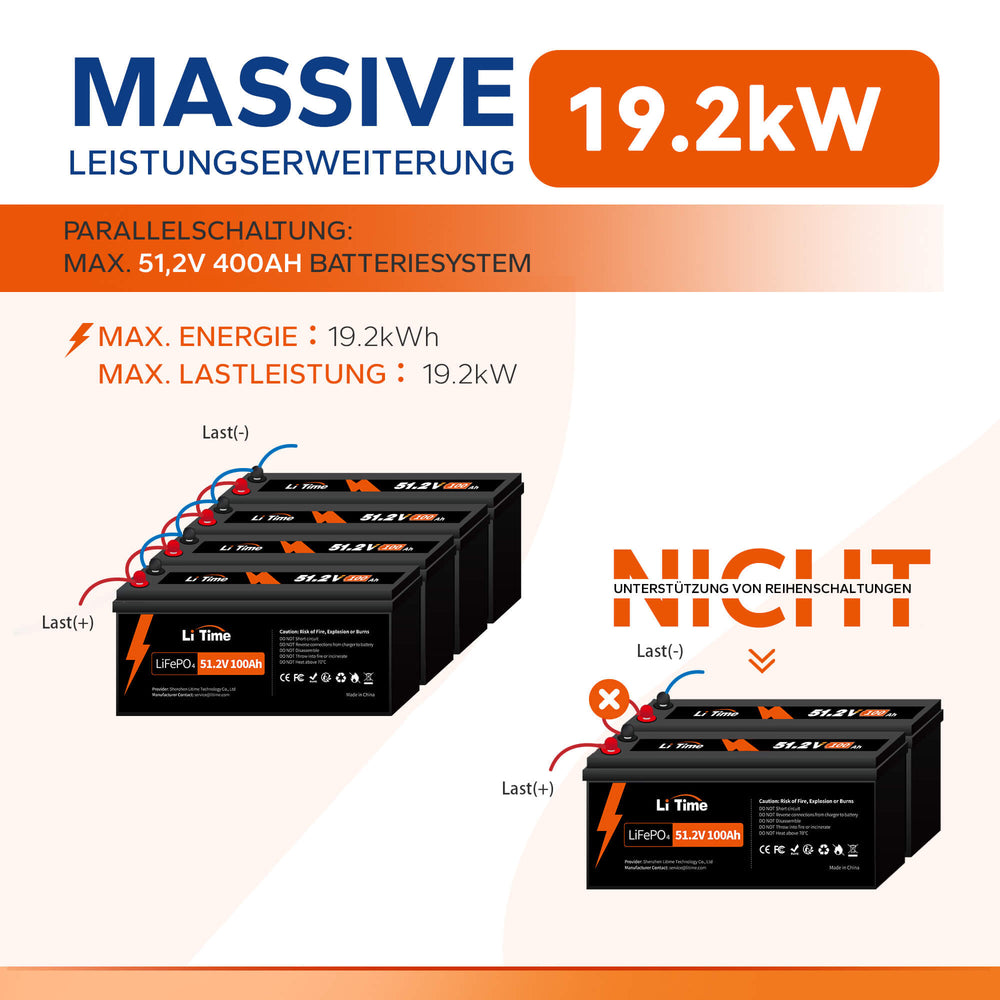

The batteries perform well under moderate usage and offer excellent scalability for parallel configurations. The robust BMS provides safety, and the energy density is competitive for the price. While freeze protection could be improved, these are minor drawbacks compared to the overall value.
Pros:
- Affordable, especially during promotions.
- Efficient charging and stable voltage under medium and high loads.
- Scalable for higher capacity systems.
Cons:
- Limited freeze protection requires external solutions.
Rating: 4.9/5
Highly cost-effective for light to high loads, with thoughtful planning required for winter operation. A great option for those balancing performance and budget.
Customer Support:
I had the pleasure of interacting with Elena Zhang from Litime's customer support team, and I must say, the experience was great.
Elena’s expertise in the technical aspects of Litime batteries and their integration into various systems was evident in every interaction.
Rating: 5/5
